PU Foam Making Machine /Polyurethane Foam Making Machine
/Polyurethane Foam Injection Machine
Equipment Features:
High precision bent-axial type axial piston variable pump, accurate
measurement, stable operation;
High precision self cleaning high-pressure mixing head, high
pressure injection, impingement mixing, extremely high mixing
uniformity, no scrap, free cleaning and maintenance. Made by high
strength material with long service life;
B and A material pressure needle valves will be locked after
balancing, which ensures no pressure difference between two
components;
Magnetic coupling coupler with high tech permanent magnetic
control, no temperature rise and no leakage;
Mixing head adopts double proximity switch control interlock
function;
Raw material timing cycle function ensures no crystallization
during downtime;
Full digitalization, modular integrated control all process flow,
accurate, safe, intuitive, intelligent, humanization.
Technical Parameter:
| Injection Output: | 50-5000g/s | Repeat injection accuracy: | ±1% |
| Material tank volume: | 250L-500L | Compressed air needed: | Dry,oil free P:0.7Mpa Q:600NL/min |
| Injection pressure: | 10-20Mpa(adjustable) | Temperature control system: | Heat: 2×9Kw |
| Mixing ratio range: | 1:5~5:1(adjustable) | Input power: | Three-phase five-wire 380V 50HZ |
| Injection time: | 0.5~99.99S(correct to 0.01S) | Total power: | 39KW-123KW |
| Material temperature controlling error: | ±2℃ | Raw material viscosity(22℃): | POLY ~2500MPas ISO ~1000MPas |

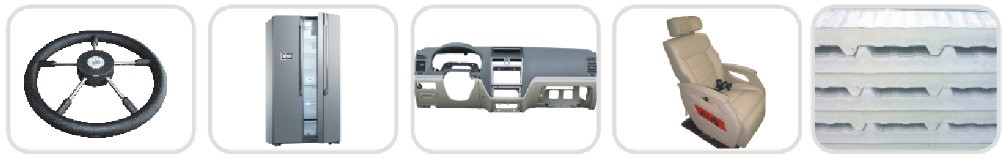

Final Products Cases:
Seat cushion, head cushion, backrest, pillow, mattress, steering
wheel, bumper, instrument board, sunshade board, imitation wood,
furniture, motor bicycle cushions, tyre, thermal insulation
material, refrigerator materials, roof insulating slab, office
chair, handrail, fitness equipment, medical appliance, building
materials, stress ball, memory foam, high resilience foam products,
slow rebound foam products, etc.
