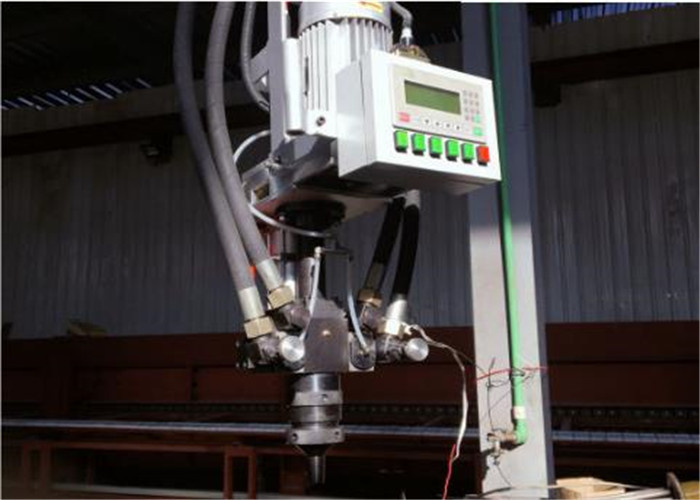

Low Pressure PU Foaming Machine /PU Injection Machine /Polyurethane Foaming Machine

Technical Parameter:

Injection output: 0.9-1600g/s
Material tank volume: 30L-120L

Mixing ratio range: 100: 28~48; 100:50-150
Mixing head: 2800-5000rpm, forced dynamic mixing

Compressed air needed: dry, oil free, P: 0.6-0.8MPa Q:600NL/min(customer-owned)

Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)

Temperature control system: heat: 2*3KW
Input power: three-phase five-wire 380V 50HZ
Rated power: 8KW-12KW

Color( customizable): White/Red/Blue
Weight: 600Kg-1200Kg

Dimension: 4100(L)*1250(W)*2300(H)mm

Equipment Overview:

PU foaming machines have wide application in the market,which have features of economy and convenient operation and maintenance,etc. The machines can be made according to customers' requirement for various flow rate.

Final Products Examples:

Pillow, backrest, mattress, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, fitness equipments, thermal insulation materials, bicycle cushion, car cushion, hard foaming, refrigerator materials, medical appliances, elastomer, insole, outsole, etc.

Company name: Shanghai Rong Xing Industry & Trade Co., Ltd.

2.Factory Add: 5 building, No. 489 Guanghua Road, Xiaokunshan Town, Songjiang district, 201616, Shanghai,P.R.China.(Shanghai Ruihuan Technology Park).

Factory area:7500 square meters.

Compare with other suppliers,our company unique advantages is strong design capability for customers.

Our company main products are Polyurethane spray machine,Polyurea spray machine ,Spray foam pumps,

spray guns,lubrication pumps and so on.
